ONLY FITS THE EVENTURI INTAKE SYSTEM: Mercedes A35 AMG, CLA35 AMG, A250, CLA250 | W177, V177, Z177

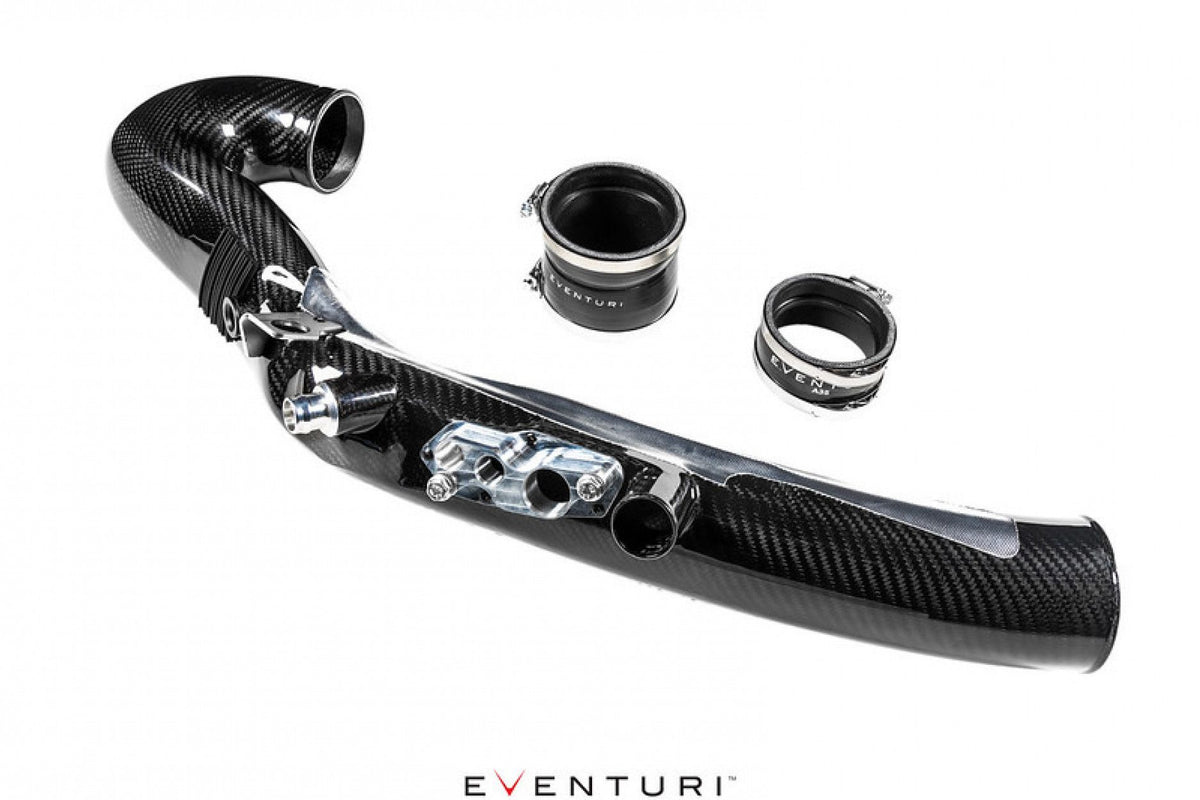

The Mercedes A35 Eventuri Turbo pipe is designed to provide the turbo with a less restrictive flow path compared to the stock pipe. We managed to increase the internal volume and eliminate the grooved, flexible section on the airbox side. By using a completely solid pipe the entire way from the intake to the turbo, the flow path is smoother and the airflow can therefore remain more laminar. To accommodate the engine's movements, our A35 intake has a "floating" tube that can move within the airbox. The shape of the carbon tube on the turbo side was optimized using CFD to minimize turbulence. The connection to the turbo is achieved through an innovative silicone coupling that features an internal thermal separator between the carbon tube and the metal turbo housing. The multiple vent ports at the rear of the tube are done with a CNC machined block that also provides a smooth interior surface for airflow within the tube.
The Eventuri A35-A250 Turbo Intake Pipe is manufactured from prepreg carbon fiber and supplied with a range of other components designed for a specific purpose and manufactured to the highest standards.
It is available to fit the A35, CLA35 and A250. The inlet pipe is only suitable for our intake system.
Here you will find the details about the individual components and the design philosophy behind them:
Each intake system consists of:
Prepreg carbon tube
CNC-milled ventilation block
CNC-milled MAP boss
CNC-milled vent fitting
CNC-milled reinforcement ring
Laser-cut bracket
Silicone couplings with oil-resistant lining
Marine grade stainless steel hose clamps
